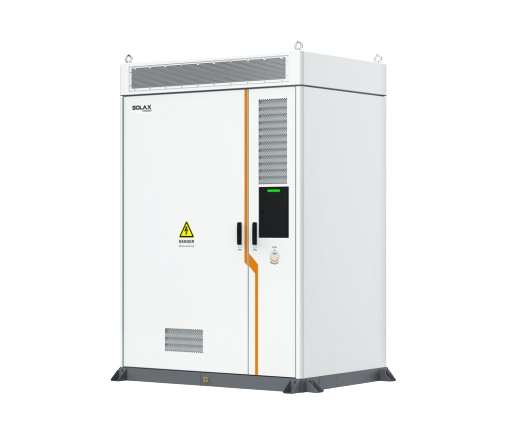

工商业一体式储能系统
概述
ag亚娱能源工商业储能系统是专为商业和工业场景设计的高效解决方案，采用液冷与风冷双模式散热系统，确保最优运行性能。系统基于磷酸铁锂技术，配备先进能量管理系统（EMS）与储能变流器（PCS），支持实时监控、智能调度，并可无缝对接光伏发电、电动汽车充电及备用电源系统。适用于削峰填谷、需求响应及备电保障等场景，显著提升能效、降低用能成本并增强用能安全。
-
一体化集成
ag亚娱的工商业储能系统采用一体化设计，将储能电池、PCS、热管理系统及交直流配电整合于单一装置。电池容量最高达261 kWh，为商业和工业应用提供稳定可靠的电力保障，大幅简化部署与维护流程。
-
最高261 kWh
电池容量
-
最高125 kW
输出功率
-
-
多重安全保障
系统配备四层级防火防护设计，逆变器达到IP66防护等级，机柜具备IP55防护级别，确保在多种环境下保持高耐久性与安全可靠性。
-
四层级
防火设计
-
IP66逆变器 | IP55机柜
强化防护
-
-
卓越性能表现

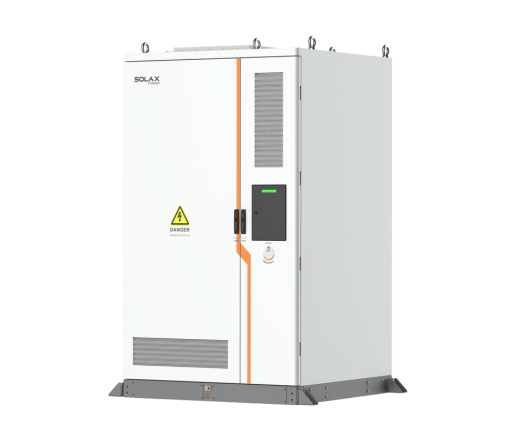

采用高性能磷酸铁锂电池，ag亚娱能源工商业储能系统具备长循环寿命与稳定输出特性。智能液冷热管理技术精准调控电池温度，提升系统效率与使用寿命。
-
磷酸铁锂电池
长循环寿命
-
智能液冷技术
精准温控
-
-
智能管理
工商业储能系统支持虚拟电厂（VPP）功能，并集成ag亚娱云平台实现全天候远程监控，确保随时随地高效稳定运行。
-
虚拟电厂支持 | 全天候监测
-
产品参数
-
TRENE-P125B261L-E-
AC SIDE (ON-GRID)
Rated AC power 125 kW Rated AC voltage 3 / N / PE, 220 / 380 V 3 / N / PE, 230 / 400 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 261 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 1350 x 2355 x 1350 mm Weight 2810 kg Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55 If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
-
TRENE-P124B261L-E
-
AC SIDE (ON-GRID)
Rated AC power 124.9 kW Rated AC voltage 3 / N / PE, 220 / 380 V 3 / N / PE, 230 / 400 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 261 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 1350 x 2355 x 1350 mm Weight 2810 kg Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55 If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
-
TRENE-P249B1044L-4H
-
AC SIDE (ON-GRID)
Rated AC power 249.8kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
-
TRENE-P250B1044L-4H
-
AC SIDE (ON-GRID)
Rated AC power 250 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
-
TRENE-P499B1044L-2H
-
AC SIDE (ON-GRID)
Rated AC power 499.6 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 13 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
-
TRENE-P500B1044L-2H
-
AC SIDE (ON-GRID)
Rated AC power 500kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 13 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
-
TRENE-P249B1044L-4H
-
AC SIDE (ON-GRID)
Rated AC power 249.8kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
-
TRENE-P250B1044L-4H
-
AC SIDE (ON-GRID)
Rated AC power 250 kW Rated AC voltage 3/N/PE,230/400 V
3/N/PE,220/380 V
Rated AC frequency 50 Hz / 60 Hz -
DC SIDE
Battery type LFP / 314 Ah Battery capacity 1044 kWh Rated battery voltage 832 V -
SYSTEM PARAMETER
Dimensions (W×D×H) 2991 x2896 x2438 mm Weight 12.5 t Operating temperature range -30 ~ 55°C (＞45℃ derating) Max. operation altitude 3000 m Cooling concept
Liquid cooling Ingress protection IP55
-
